Key Advantages

1.Fewer components enable fast installation, allowing ultra-rapid single-step bolt mounting, while delivering efficient and cost-effective waterproof performance.

2.Equipped with waterproof flashing plates, providing efficient and economical waterproof protection and effectively preventing roof leakage.

3.Made of lightweight aluminum alloy, reducing the load imposed on the roof.

4.The L-shaped feet can be flexibly combined with various types of rails, enabling the system to withstand different wind and snow loads.

5.Compatible with various solar panel specifications available on the market.

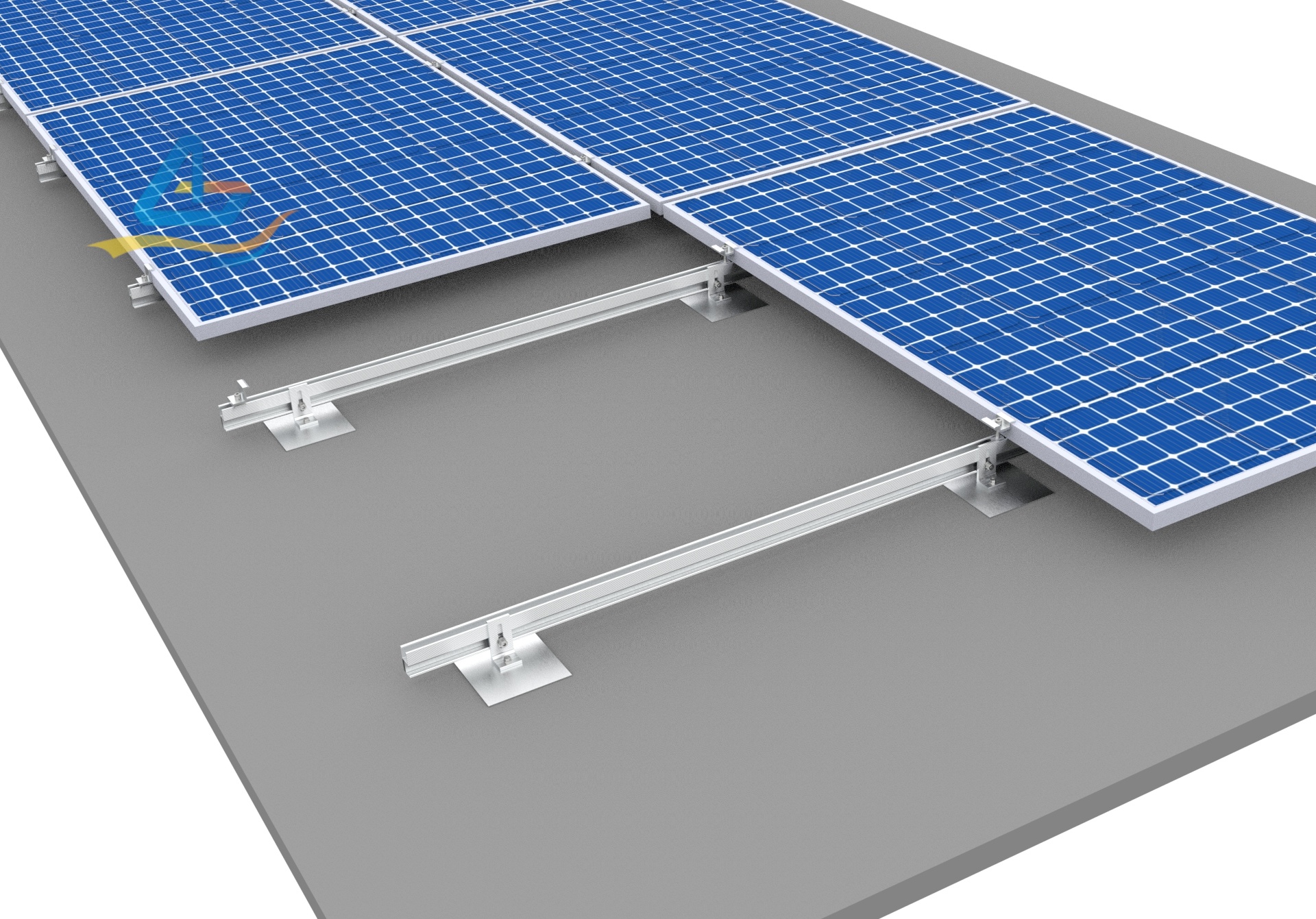

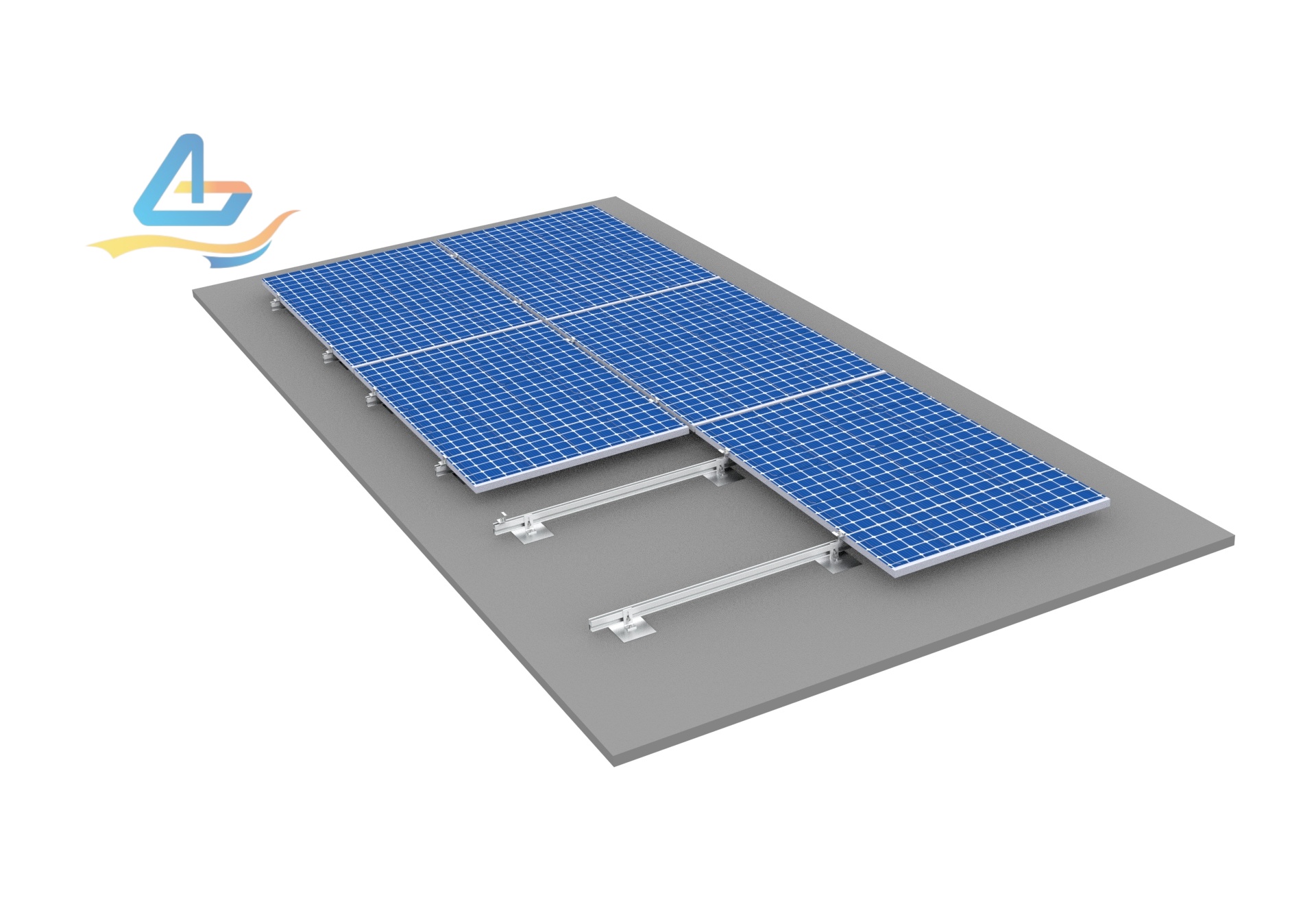

Asphalt Shingle Roof Solar Mounting System - Connections & Components

System Connections

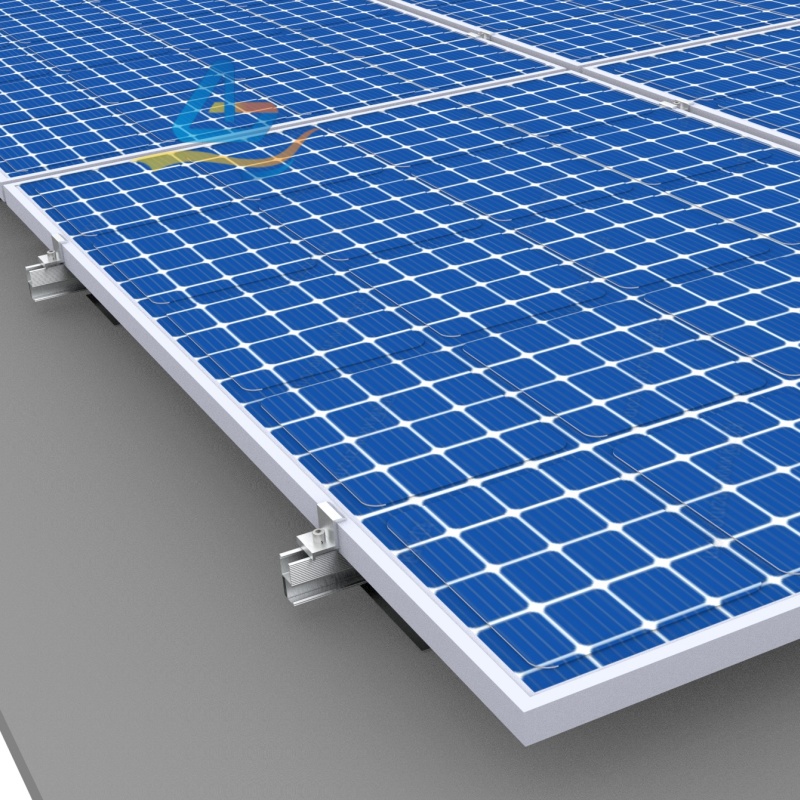

End Clamp Connection

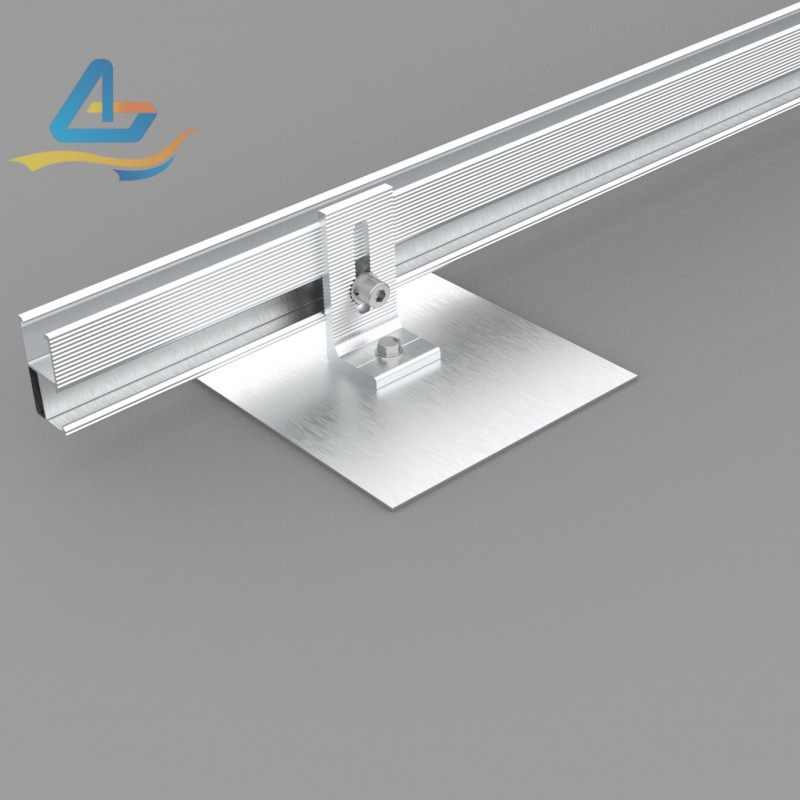

L-Foot Connection

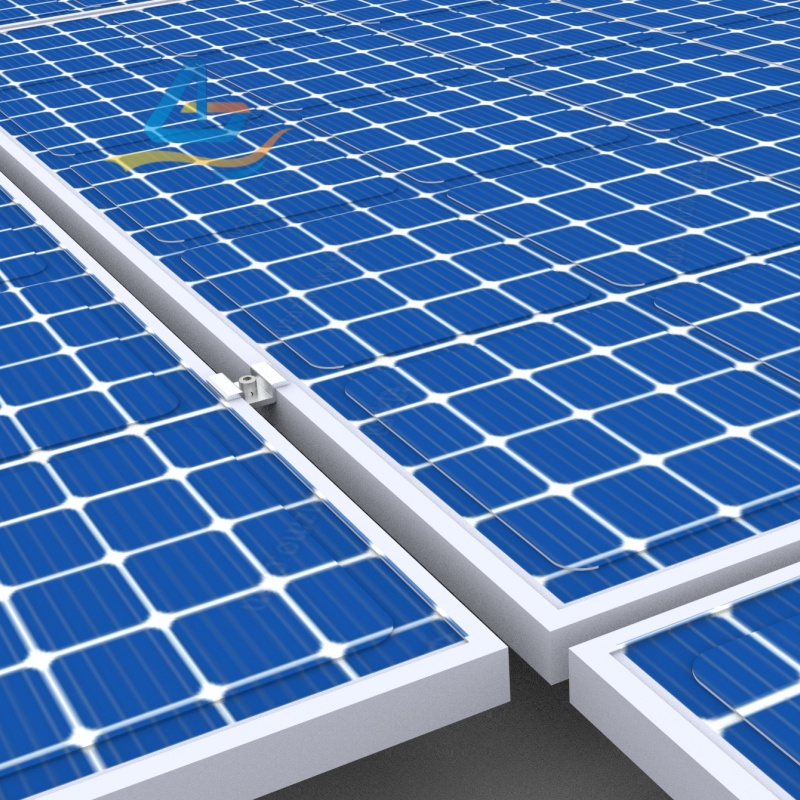

Mid Clamp Connection

System Components

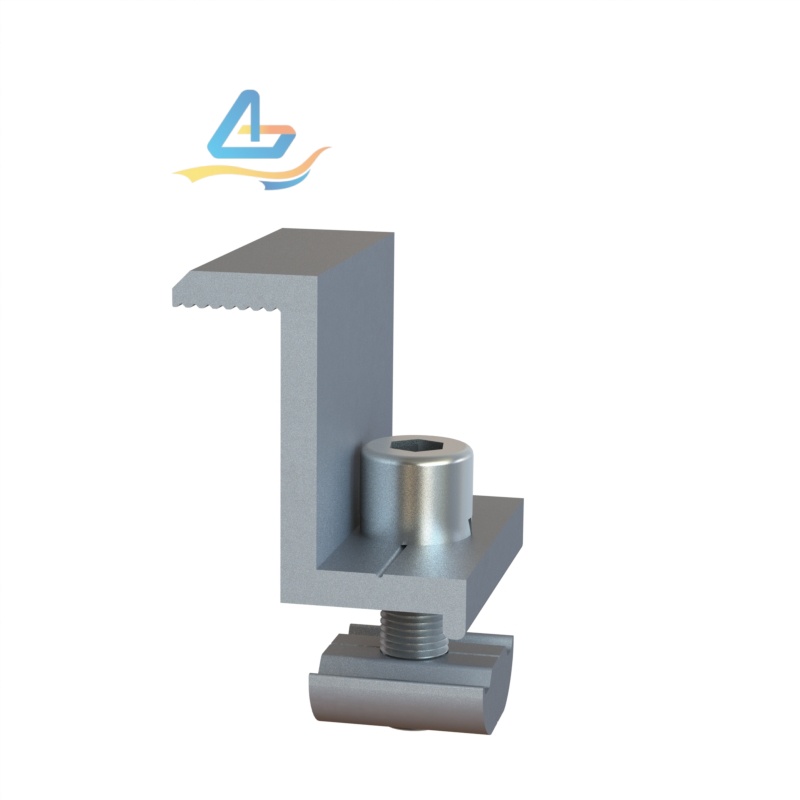

End Clamp

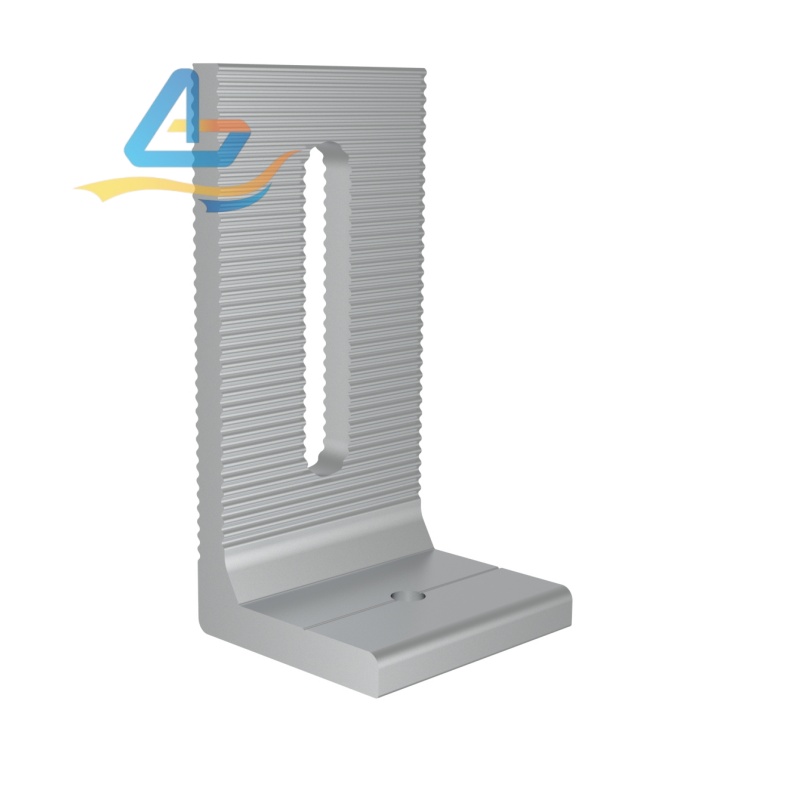

L-Foot

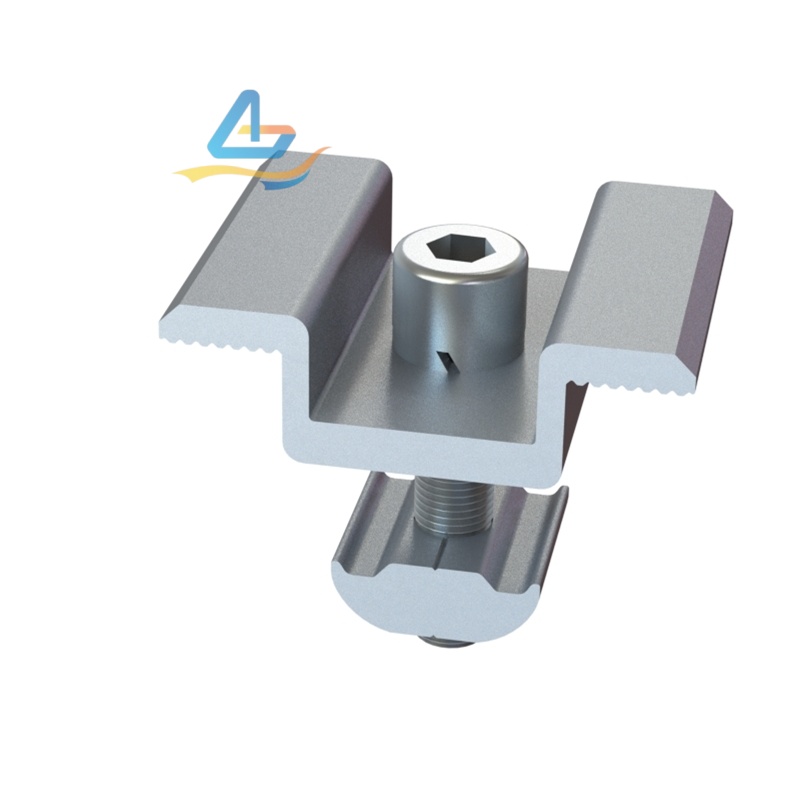

Mid Clamp

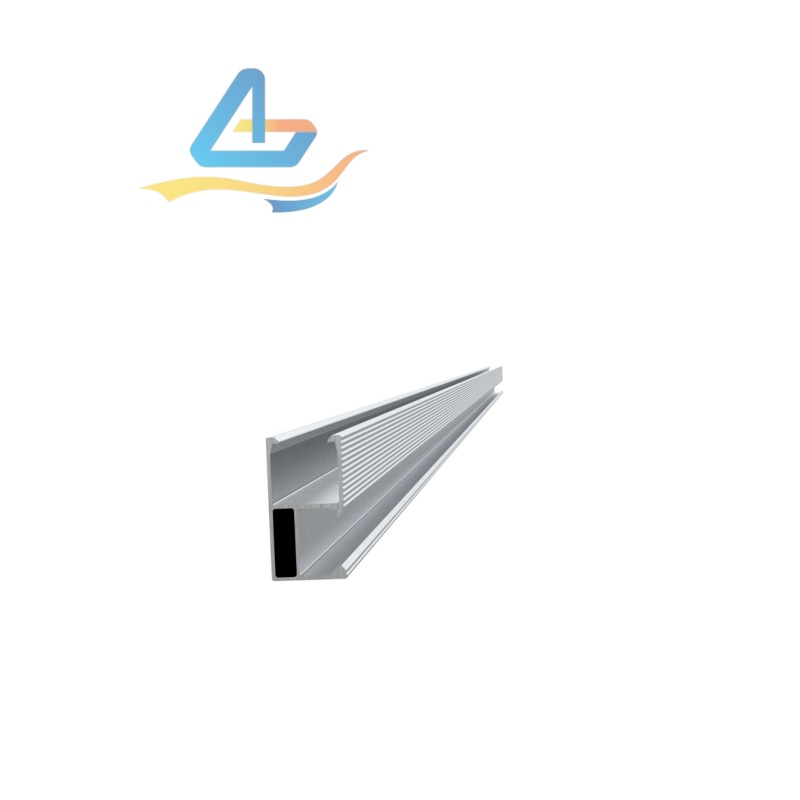

Rail-1

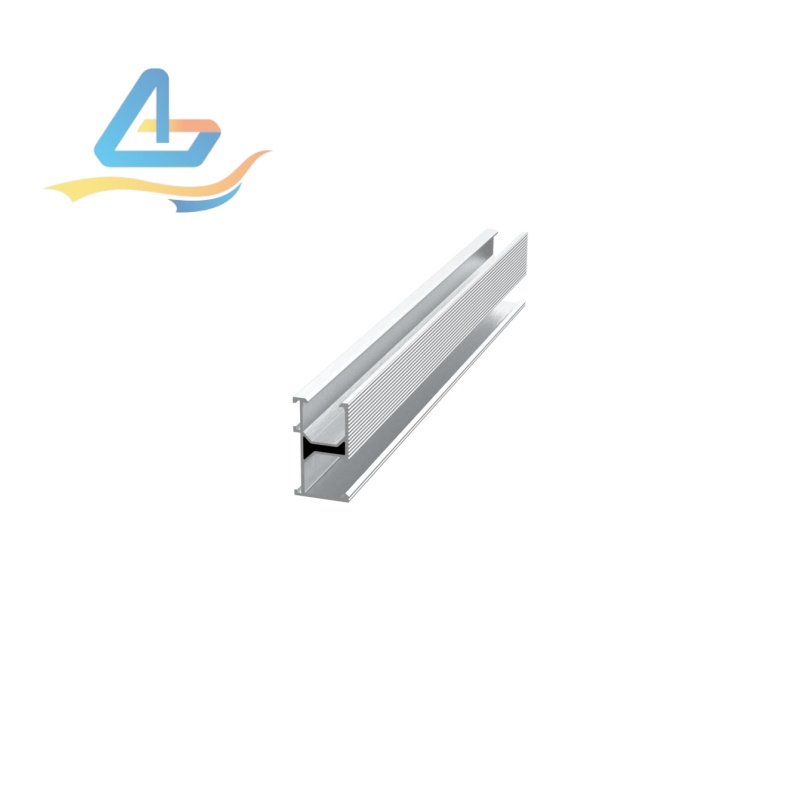

Rail-2

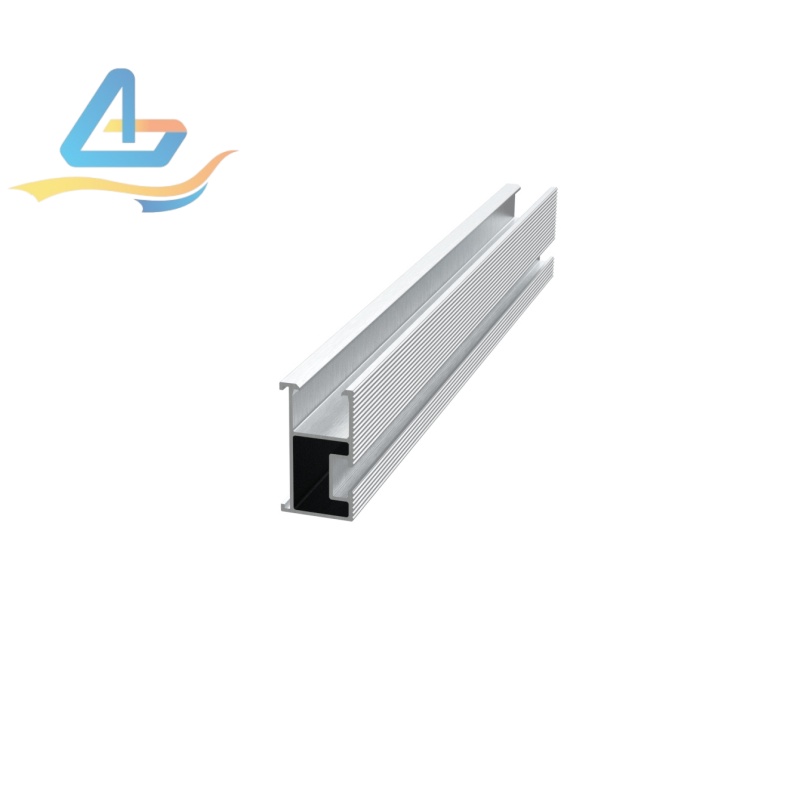

Rail-3

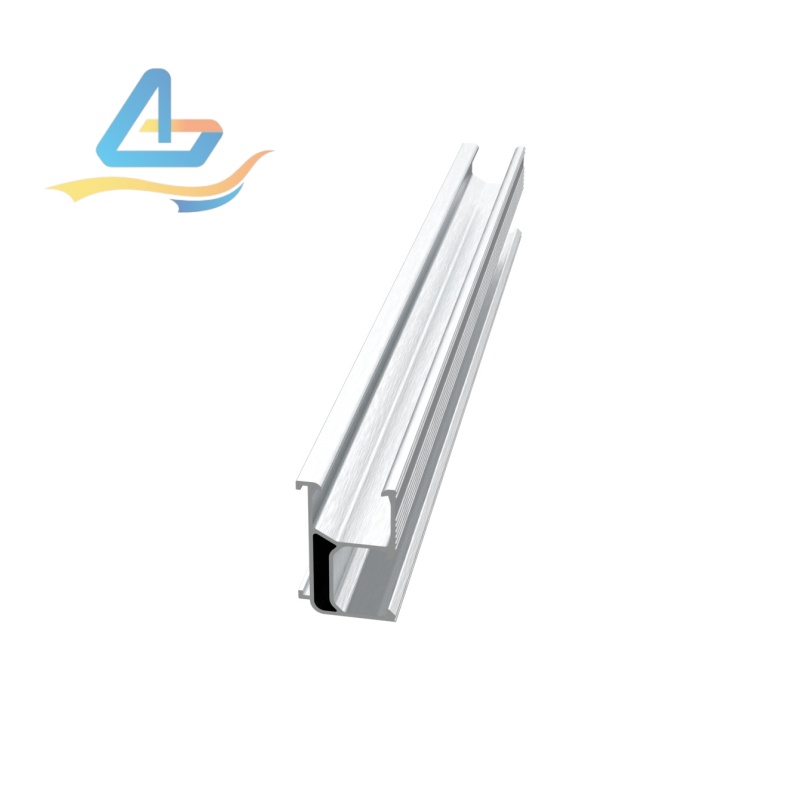

Rail-4
